Details

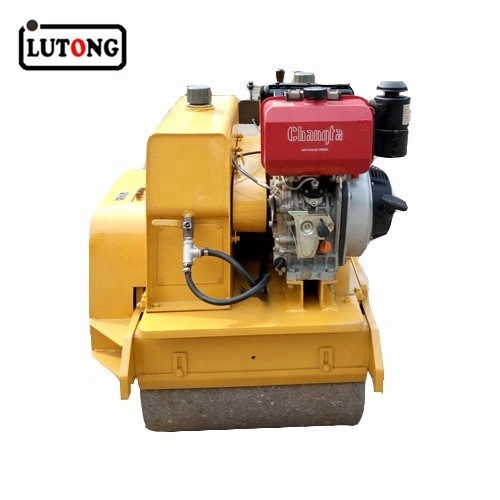

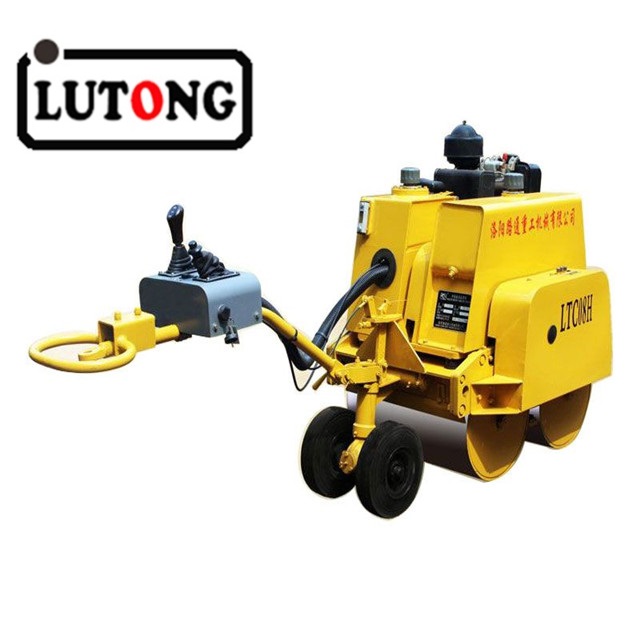

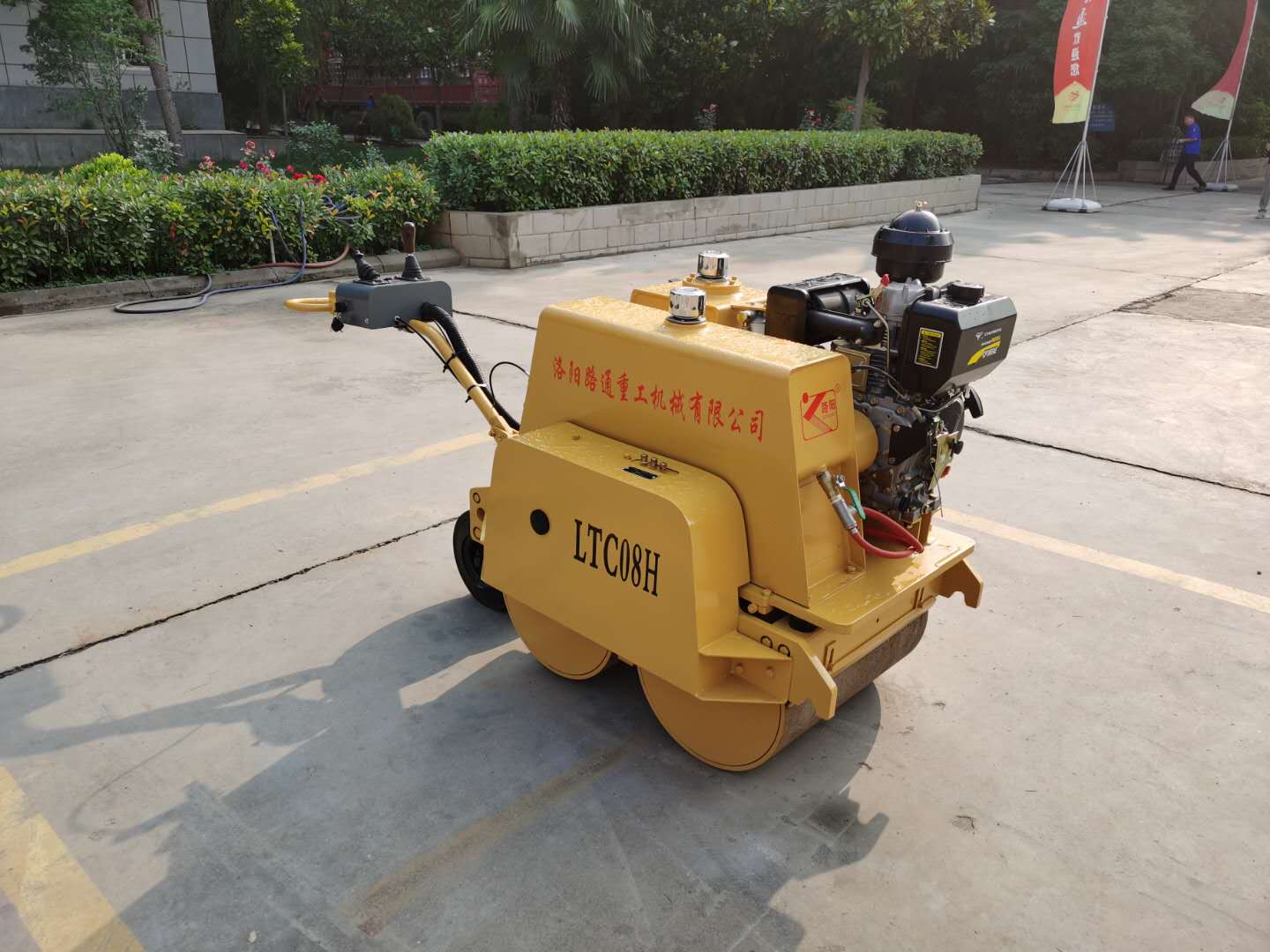

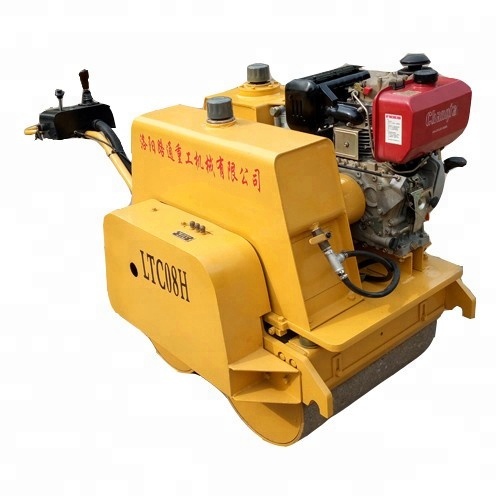

LTC08H 0.8 Tons Hydraulic Mini Walking Behind Double Drum Road Roller
Main Features
1.The whole machine has a nice shape, compact structure and small size; it can do rolling work in narrow ground;
2.All wheel drive, strong climbing capability;
3.Using CFI86F vertical direct-spray air-cooled engine, with both electrical and manual startup devices;
4.Designed with guide wheel and joystick, it is labor saving and easy to control.
5.Hydraulic travel,Adopt imported pump and starting motor,CVT.
Main Technical Parameters
Model | LTC08H | |
Operating mass | kg | 770 |
Static linear load | N/cm | 62/62 |
Vibration amplitude | mm | 0.25 |
Vibration frequency | HZ | 48 |
Centrifugal force | KN | 12 |
Travel speed | Km/h | 0-4 |
Grade ability | % | 40 |
Turning radius | mm | 2700 |
Turning angle | ° | ±30 |
Overall dimension | mm | 2400X 880X 1100 |
Vibration drum diameter | mm | 400 |
Drum width | mm | 600 |
Wheel base | mm | 470 |
Diesel power | kw | 5.68 |
Diesel model | CF186F | |
Water tank capacity | L | 32 |
